Vortex Sensor for Flow Measurement
For facility managers and engineers across Pakistan, the ability to monitor steam, gases, and liquids with absolute precision is not just a luxury it is a necessity. At JAMS, we understand that accurate data is the lifeblood of optimization. That is why we are proud to introduce the ultimate solution for industrial monitoring: the VX 570 – Vortex Sensor for flow measurement. As the premier provider of automation and measurement systems, JAMS brings you this state-of-the-art technology designed to withstand the harshest industrial environments while delivering the granular data you need to reduce waste and maximize output.
The Evolution of Industrial Flow Monitoring
For decades, industries struggled with mechanical flow meters that were prone to wear and tear. Moving parts like turbines would degrade, bearings would seize, and calibration would drift, leading to unreliable data and frequent, costly maintenance shutdowns. Furthermore, traditional measurement technologies often failed to account for the dynamic nature of industrial fluids. A simple change in pressure or temperature could render a volumetric flow reading completely inaccurate, leading to billing errors and energy inefficiency.
The industrial sector needed a revolution. It needed a device that combined the durability of stainless steel with the intelligence of modern computing. This is where the vortex shedding principle changed the game. By utilizing the physics of fluid dynamics rather than mechanical rotation, vortex sensors offer a solution that is virtually immune to drift and wear. JAMS is at the forefront of bringing this advanced technology to your facility, ensuring that your operations are backed by the world’s most reliable measurement standards.

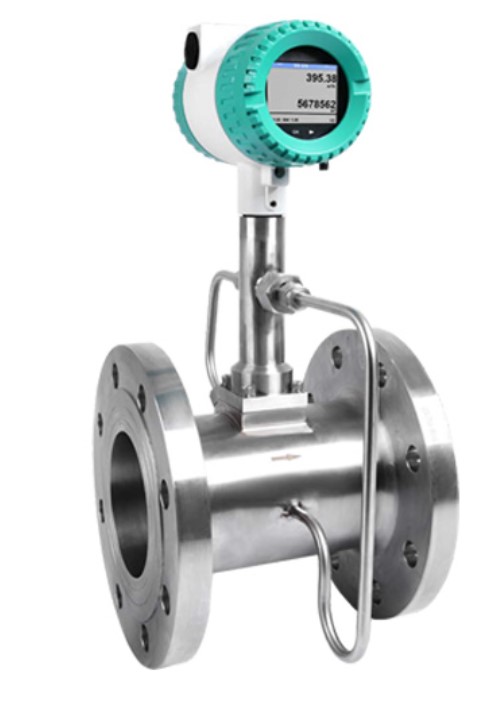

The All-in-One Solution: How the VX 570 Works
What sets the VX 570 apart from standard flow meters is its integrated approach to measurement. In many industrial applications, particularly with steam and gases, measuring the volume of the flow is insufficient because the density of the medium changes with temperature and pressure. To get a true understanding of your energy usage, you need to measure Mass Flow.
Traditionally, this required installing three separate devices: a flow meter, a pressure transmitter, and a temperature sensor, all wired into a separate flow computer. This setup was expensive, difficult to install, and prone to wiring errors.

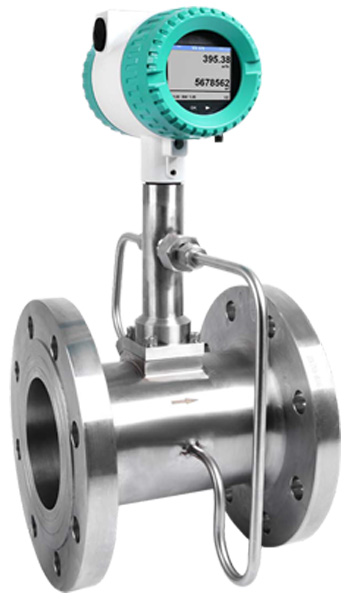

The VX 570 eliminates this complexity. It is an all-in-one technological marvel that incorporates:
- A Precision Vortex Sensor: To measure the flow velocity.
- A Temperature Sensor: Integrated directly into the probe.
- A Pressure Sensor: Built into the unit to monitor line pressure changes in real-time.
By processing these three variables simultaneously, the VX 570 calculates the precise mass flow or standardized volume flow directly within the device. When you install this unit from JAMS, you are not just installing a sensor; you are installing a complete flow computer that fits into a single connection point.
Unmatched Versatility for Pakistan’s Industries
At JAMS, we service a diverse range of clients, from textile mills in Faisalabad to pharmaceutical plants in Karachi and power generation sectors across the country. The standout feature of the VX 570 is its incredible versatility. It is a single solution capable of mastering three distinct phases of matter:
-
Steam Measurement (Saturated and Superheated)
Steam is the most expensive utility in many factories. Inefficient steam boilers or distribution leaks can bleed a company’s budget dry. The VX 570 is specifically engineered to handle the high temperatures and pressures associated with steam lines. Because it compensates for density changes instantly, it provides the accurate mass flow data (kg/h) required to calculate boiler efficiency and allocate costs correctly between different production departments. Its robust construction ensures it survives the thermal shock and water hammer effects that often destroy lesser sensors.
-

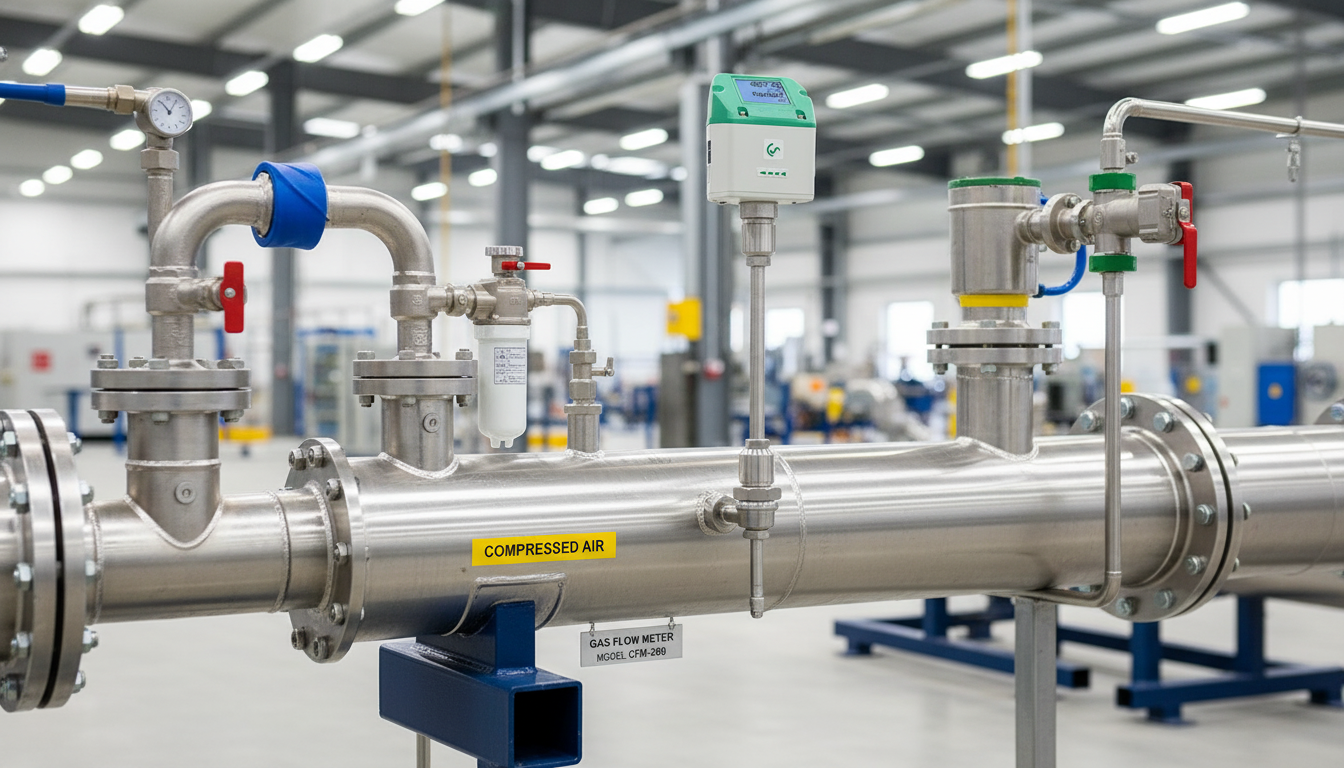

Compressed Air and Mixed Gases
Compressed air is often called the “fourth utility,” yet it is frequently unmeasured. The VX 570 is ideal for monitoring main headers to detect huge usage spikes or leaks. Furthermore, unlike thermal mass meters that rely on a specific gas composition, the vortex principle is physical. This means the VX 570 remains accurate even if the gas composition changes slightly, making it perfect for mixed gases, technical gases, and burner applications.
-
Liquids and Conductive Fluids
From cooling water loops to condensate return lines, the VX 570 offers a reliable alternative to magnetic flow meters, especially in non-conductive fluids where mag-meters fail. Its ability to handle high fluid velocities without cavitation or pressure drop makes it a favorite for pump performance monitoring.
Technical Superiority: Built for the Rough and Tumble
Industrial environments are noisy, hot, and vibrating. A delicate laboratory instrument will not survive a week on a heavy manufacturing floor. The VX 570 offered by JAMS is built like a tank but thinks like a supercomputer.
Vibration Resistance:
One of the historical weaknesses of vortex meters was their sensitivity to pipeline vibration, which could be mistaken for flow. The VX 570 utilizes advanced Digital Signal Processing (DSP) to differentiate between the frequency of the flow vortices and the background noise of the plant. This ensures that even if your pipes are vibrating due to nearby heavy machinery, your flow reading remains stable and accurate.
No Moving Parts:
The sensor body and the shedding bar are constructed from high-grade stainless steel. There are no impellers to break, no bearings to grease, and no seals to leak. This “install and forget” reliability is why JAMS recommends the VX 570 for critical process lines where maintenance access is difficult or dangerous.
High Turndown Ratio:
Processes rarely run at 100% capacity all the time. You need a meter that is accurate during peak production and low-load weekends. The VX 570 offers an exceptional measurement range, maintaining accuracy even at low velocities where other meters would read zero.
Discover the Strength Behind a Partnership with JAMS
Buying industrial instrumentation is about more than just the hardware; it is about the support system behind it. JAMS has established itself as a leader in the Pakistani market by prioritizing customer success over quick sales. When you source your VX 570 through JAMS, you are gaining a partner dedicated to your operational excellence.
Expert Selection Advice:
Sizing a vortex meter is critical. If the meter is too big, it won’t read low flows; too small, and it creates a pressure drop. Our team of engineering experts at JAMS works with you to analyze your pipe sizes, flow rates, and media conditions to select the perfectly sized unit for your application.
Seamless Integration:
We understand that modern factories run on data. The VX 570 comes equipped with standard industry outputs, including Modbus RTU, pulses, and 4-20mA analog signals. This allows for seamless integration into your existing SCADA, PLC, or BMS systems. The JAMS technical team can guide you through the integration process, ensuring you have real-time visibility on your dashboard from day one.
Genuine Warranty and Support:
The market is flooded with counterfeit and grey-market electronics. JAMS guarantees 100% authentic products backed by manufacturer warranties. Our local presence means that if you ever have a technical question or require troubleshooting, support is just a phone call away. We don’t just ship boxes; we provide peace of mind.
Driving Sustainability and Cost Reduction
In today’s economy, sustainability is synonymous with profitability. Wasted steam, leaking air, and excessive water usage are direct hits to your bottom line. By deploying the VX 570 across your facility, you unlock the power of energy management.
- Leak Detection: Identify areas where flow continues even when production is stopped.
- Boiler Efficiency: Correlate fuel input with steam output to determine the real-time health of your boilers.
- Cost Allocation: Accurately bill different departments for their exact utility usage, fostering a culture of accountability and conservation.
JAMS empowers you to take control of your resources. The ROI on a VX 570 installation is often measured in months, not years, simply by identifying and plugging energy leaks that were previously invisible.
Installation and Ease of Use
Time is money, and prolonged downtime for installation is unacceptable. The VX 570 is designed for rapid deployment. It is available in both wafer (sandwiched between flanges) and flanged versions, adhering to standard DIN and ANSI dimensions. This means it can often drop directly into the space left by an old, failed meter.
The user interface is intuitive and robust. The integrated display allows technicians to read flow rates, totalizer values, temperature, and pressure right at the installation point. Configuration can be done directly through the display keys or remotely via the digital interface, reducing the time your technicians spend in hazardous areas.
The JAMS Commitment to Quality
Our reputation is built on the reliability of the systems we supply. We have rigorously vetted the VX 570 against the unique challenges of the Pakistani industrial sector including power fluctuations, ambient heat, and humidity and it has proven its resilience time and again. We are not just a vendor; we are a specialized engineering firm that curates the best technology the world has to offer and makes it accessible to local industries.
Choosing JAMS means choosing a future-proof facility. It means refusing to accept “good enough” data and demanding precision. It means aligning your business with a supplier that understands the technical intricacies of flow dynamics and the economic realities of manufacturing.
The industrial landscape is shifting towards digitalization, precision, and efficiency. Old estimation methods and mechanical meters are relics of the past that are costing you money every single day. To compete in the global market, your facility needs eyes inside the pipes—accurate, reliable, and durable monitoring that empowers intelligent decision-making.
JAMS is ready to equip your business with this competitive edge. We invite you to upgrade your infrastructure with a device that defines the new standard for reliability. Contact our engineering team today to discuss your application requirements and discover how we can optimize your steam, gas, and liquid processes.
Trust JAMS to deliver the technology that drives your success, anchored by the unmatched performance of the VX 570 – Vortex Sensor for flow measurement.
Frequently Asked Questions

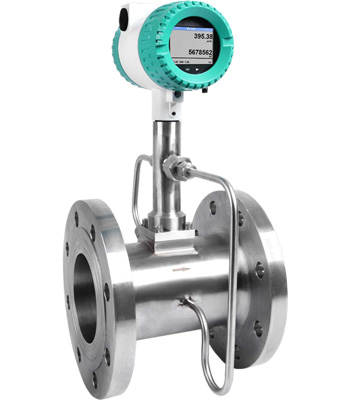

What is the VX 570 Vortex Sensor?
The VX 570 is a high-precision vortex flow sensor designed to measure the flow rate of liquids, gases, and steam using vortex shedding technology.
How does the VX 570 measure flow?
It detects vortices created by a bluff body placed in the flow path. The frequency of these vortices is directly proportional to the velocity of the fluid, resulting in accurate flow measurement.
Which types of media can the VX 570 measure?
The sensor is suitable for clean liquids, gases, and saturated or superheated steam, making it versatile for industrial applications.
What industries commonly use the VX 570?
It is widely used in chemical processing, HVAC, power generation, food and beverage, water treatment, and general industrial flow monitoring.
Is the VX 570 accurate for low-flow conditions?
Vortex sensors generally perform best at medium to high flow rates. While the VX 570 offers extended turndown, extremely low-flow conditions may require alternative sensor technologies.
Does the VX 570 require regular maintenance?
The sensor has no moving parts, which reduces maintenance significantly. Periodic inspection for buildup or scaling is recommended depending on operating conditions.
Can the VX 570 measure bidirectional flow?
Most vortex sensors measure flow in a single direction unless designed otherwise. Check the specific model configuration of the VX 570 for bidirectional capability.
Is the VX 570 affected by temperature or pressure changes?
It is engineered to withstand wide temperature and pressure ranges. Compensation features ensure stable and accurate readings under varying operating conditions.
What installation requirements should be considered?
Proper straight-pipe lengths upstream and downstream are important for accuracy. Avoiding turbulence sources like bends or valves near the installation point ensures optimal performance.
Does the VX 570 support digital communication protocols?
Depending on the configuration, the VX 570 may support protocols such as HART, Modbus, or pulse output for integration into modern industrial systems.
Is calibration required for the VX 570?
It comes factory-calibrated, but periodic verification may be needed for critical applications or environments with harsh process conditions.
Can the VX 570 handle corrosive fluids?
Yes, if paired with appropriate materials such as stainless steel or corrosion-resistant alloys. Always match sensor material with process fluid characteristics.
Does pipe vibration affect the VX 570’s performance?
Excessive vibration may interfere with measurement accuracy. Proper mounting and pipe support help reduce vibration influence.
What is the typical lifespan of the VX 570 sensor?
With its robust construction and non-moving internal components, the sensor offers a long operational lifespan, often extending over many years with proper care.
Can the VX 570 be used in hazardous environments?
Depending on the model, the VX 570 may offer certifications for hazardous or explosive areas. Always verify compliance with relevant industrial safety standards before installation.
